The reactive power compensation device composed of VODO-RHV medium voltage reactor and VODO-CHV medium voltage capacitor group can effectively suppress high-order harmonics, limit switching inrush current and operating overvoltage, improve power factor of transmission line, reduce reactive power loss, and provide stable and reliable power supply quality. The coil is made of high strength double glass wire and high quality insulating material (interlayer insulation). Vacuum pouring of epoxy resin and advanced vacuum pouring system equipment ensure excellent insulation performance and high mechanical strength.

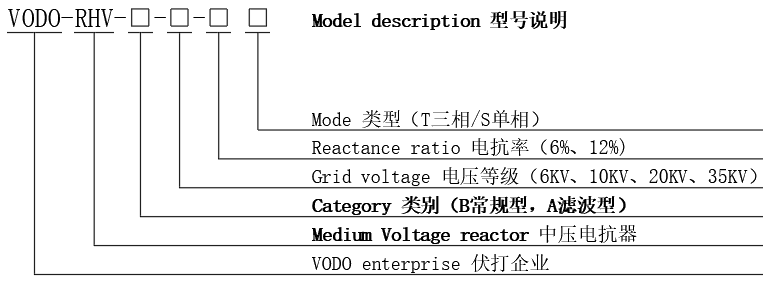

| Technical parameter性能参数 | |
| Rated voltage额定电压 | 6Kv、10Kv、20KV、35KV |
| Rated frequency额定频率 | 50Hz/60Hz |
| Connection mode电网类型 | 三相/单相 |
| Capacity额定容量 | 50~3000kvar（匹配电容器组容量） |
| Tuning coefficient调谐系数 | 6%、12% |
| Steady-state overcurrent稳态过电流（包括谐波电流） | ＜1.45In |
| Operating voltage连续运行电压 | 1.0Un |
| Long-term overvoltage长期过电压最高值 | ≤1.1Un |
| Sound level measurement声级测定 | 正常情况下，≯55dB |
| Withstand voltage外施耐压 | 对地、对相42KVAC@1min，无击穿、散落 |
| Altitude海拔高度 | ＜2000m（可定制） |
| Ambient temperature运行环境温度 | -40℃~+50℃ |
| Protection level防护等级 | IP00 |
| Cooling mode冷却方式 | cooling风冷 |
| Installation mode安装方式 | 垂直/水平，户内或户外 |
