The VODO-CHV Medium Voltage capacitors are composed of different capacitive elements. These basic units are connected in series and parallel with the purpose of obtaining the power at the necessary voltage. All elements are protected with an internal fuse that will be disconnected in case of a fault, isolating the basic unit damaged. The protection with internal fuses will increase the security of the system and continuity of the service.

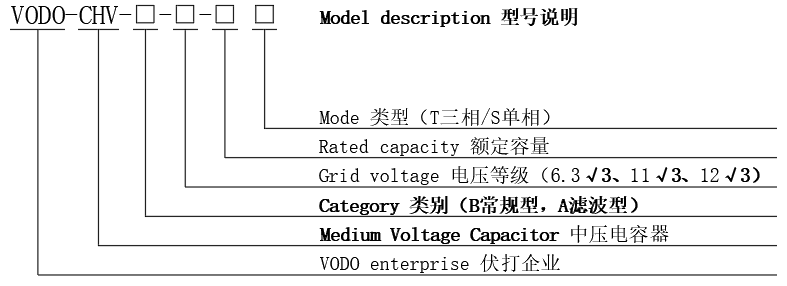

| Technical parameter性能参数 | |
| Rated voltage额定电压 | 1Kv~24Kv |
| Rated frequency额定频率 | 50Hz/60Hz |
| Connection mode电网类型 | 三相/单相 |
| Capacity额定容量 | 50~1000kvar |
| Medium介质 | 浸渍的全膜电介质 |
| Tangent value of medium介质损耗正切值 | ≤0.02% |
| Insulating oil绝缘油 | 不含氯化联苯 |
| Capacitance deviation电容偏差 | -3%~+5% |
| Temperature grade温度级别 | -25/D |
| Protect保护装置 | 内置熔断器 |
| Discharge resistance放电电阻 | 剩余电压75V/10min |
| Operating voltage连续运行电压 | 1.0Un |
| Long-term overvoltage长期过电压最高值 | ＜1.1Un |
| Steady-state overcurrent稳态过电流（包括谐波电流） | ＜1.3In |
| Altitude海拔高度 | ＜2000m（可定制） |
| Ambient temperature运行环境温度 | -40℃~+50℃ |
| Protection level防护等级 | IP00 |
| Cooling mode冷却方式 | cooling风冷 |
| Installation mode安装方式 | 垂直/水平，户内或户外 |
